Candidate Models / Leopard 40 (2015-)
Specs summary: ~40 ft cruising catamaran with multiple common layouts (eg owner's 3-cabin vs charter 4-cabin). Dimensional fit is good on LOA/beam/draft, but published air draft / bridge clearance figures appear to exceed the 63 ft baseline cap.
| Parameter | Target |
|---|---|
| LWL | 38-48 ft (11.58-14.63 m) |
| LOA | 39-52 ft (11.89-15.85 m) |
| Beam | 21-26 ft (6.40-7.92 m) |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) |
| Bridge deck clearance | >= 30 in (0.76 m) at loaded displacement (lowest point); prefer ~33 in (0.84 m) |
| Waterline to mast tip (max) | 63 ft (19.20 m) |
| Parameter | Target | Actual (published) | Fit |
|---|---|---|---|
| LWL | 38-48 ft (11.58-14.63 m) | 37 ft 6 in (listing) or 38 ft 1 in (manual) | Close (may be slightly under) |
| LOA | 39-52 ft (11.89-15.85 m) | 39 ft 4 in (11.99 m) | OK |
| Beam | 21-26 ft (6.40-7.92 m) | 22 ft 1 in (6.72 m) | OK |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) | 3 ft 10 in (manual, lightship) to 4 ft (listing) | OK |
| Bridge deck clearance | >= 30 in (0.76 m); prefer ~33 in (0.84 m) (loaded) | TBD (measure at loaded displacement; lowest point) | TBD |
| Waterline to mast tip | ≤ 63 ft (≤ 19.20 m) | 63 ft 10 in (listing "max bridge clearance") | No (over by ~10 in) |

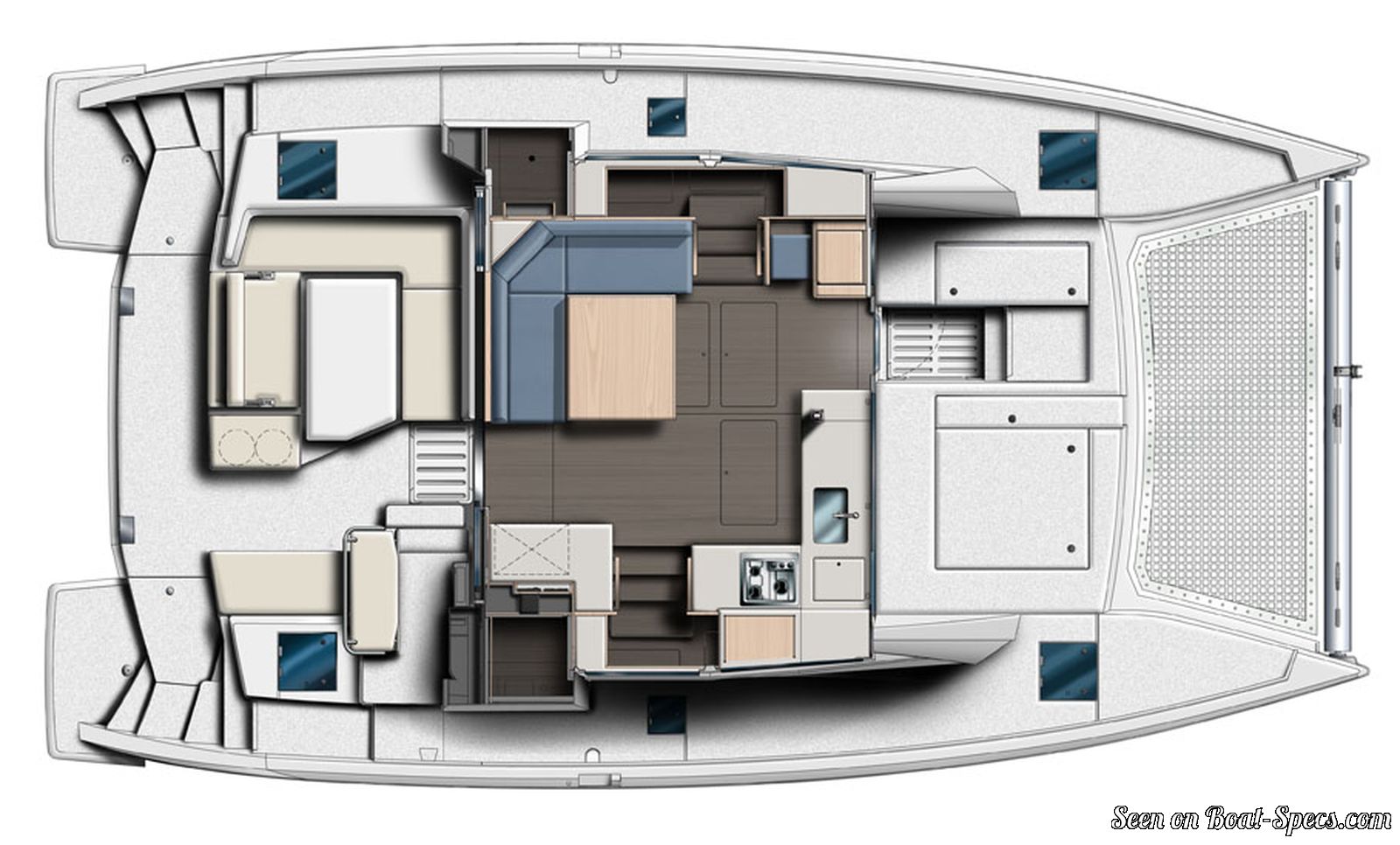

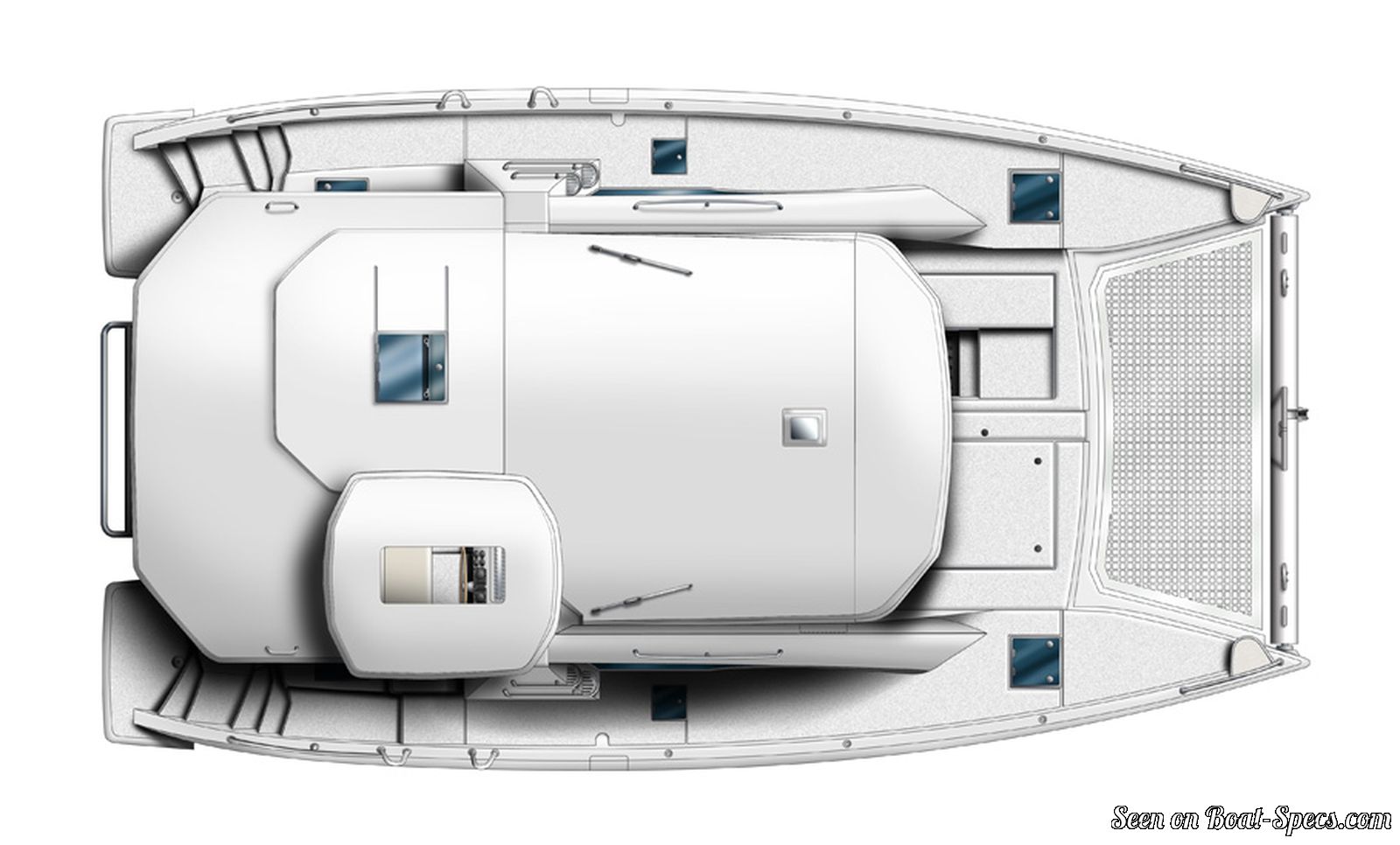

Layouts vary; these are representative (via Boat-Specs, extracted from commercial documentation).
